urob's zmk-config

This is my personal ZMK firmware configuration. It is ported from my QMK configuration, which in turn is heavily inspired by Manna Harbour's Miryoku layout.

Key features

• clean keymap + unicode setup using helper macros from zmk-nodefree-config
• keymap and combo setup portable across different physical layouts
• "timeless" homerow mods on the base layer; sticky mods on other layers
• combos replacing the symbol layer
• sticky shift on right thumb, double-tap activates caps-word
• shift + space morphs into dot + space + sticky-shift
• shift + backspace morphs into delete
• "Greek" layer for mathematical typesetting

Timeless homerow mods

Homerow mods are great. But they can require some finicky timing: In its most naive implementation, in order to produce a "mod", they must be held longer than tapping-term-ms. In order to produce a "tap", they must be held less than tapping-term-ms. This requires very consistent typing speeds that, alas, I do not possess. Hence my quest for a "timeless" HRM setup.¹

Here's what I have ended up with: A "timeless" HRM setup with virtually no misfires and yet a fluent typing experience with mostly no delays.

Let's suppose for a moment we set tapping-term-ms to something ridiculously large, say 5 seconds. This makes the configuration "timeless". But it also creates two problems: (1) In order to get a "mod" we now have to hold the HRM keys for what feels like eternity. (2) In normal typing, when tapping keys, there can be long delays between the press of a key and the time it appears on the screen. Enter my two favorite configuration options:

• To address the first problem, I use ZMK's balanced flavor, which produces a "hold" if another key is both pressed and released within the tapping-term. Because that is exactly what I normally do with HRMs, there is virtually never a need to wait past my long tapping term (see below for two exceptions).
• To address the typing delay, I use ZMK's global-quick-tap property, which immediately resolves a HRM as "tap" when it is pressed shortly after another key has been tapped.² This all but completely eliminates the delay when typing.

This is almost perfect, but there's still a few rough edges:

• When rolling keys, I sometimes unintentionally end up with "nested" key sequences: key 1 down, key 2 down and up, key 1 up. Given the balanced flavor, this would falsely register key 1 as a mod. To prevent this, I use ZMK's "positional hold-tap" feature to force HRMs to always resolve as "tap" when the next key is on the same side of the keyboard. Problem solved.
• ... or at least almost. The official ZMK version for positional-hold-taps performs the positional check when the next key is pressed. This is not ideal, because it prevents combining multiple modifiers on the same hand. To fix this, I use a small patch that delays the positional-hold-tap decision until the next key's release (PR #1423). With the patch, multiple mods can be combined when held, while I still get the benefit from positional-hold-taps when keys are tapped.
• So far, nothing of the configuration depends on the duration of tapping-term-ms. In practice, there are two reasons why I don't set it to infinity:
  1. Sometimes, in rare circumstances, I want to combine a mod with a alpha-key on the same hand (e.g., when using the mouse with the other hand). My positional hold-tap configuration prevents this within the tapping term. By setting the tapping term to something large but not crazy large (I use 280ms), I can still use same-hand mod + alpha shortcuts by holding the mod for just a little while before tapping the alpha-key.
  2. Sometimes, I want to press a modifier without another key (e.g., on Windows, tapping Win opens the search menu). Because the balanced flavour only kicks in when another key is pressed, this also requires waiting past tapping-term-ms.

Here's my configuration (I use a bunch of helper macros to simplify the syntax, but they are not necessary):

/* use helper macros to define left and right hand keys */
#include "../zmk-nodefree-config/keypos_def/keypos_36keys.h"                // keyposition helpers
#define KEYS_L LT0 LT1 LT2 LT3 LT4 LM0 LM1 LM2 LM3 LM4 LB0 LB1 LB2 LB3 LB4  // left-hand keys
#define KEYS_R RT0 RT1 RT2 RT3 RT4 RM0 RM1 RM2 RM3 RM4 RB0 RB1 RB2 RB3 RB4  // right-hand keys
#define THUMBS LH2 LH1 LH0 RH0 RH1 RH2                                      // thumb keys

/* left-hand HRMs */
ZMK_BEHAVIOR(hml, hold_tap,
    flavor = "balanced";
    tapping-term-ms = <280>;
    quick-tap-ms = <175>;                // double tapping same key allows for repeating
    global-quick-tap-ms = <150>;         // without PR #1387 use global-quick-tap instead
    bindings = <&kp>, <&kp>;
    hold-trigger-key-positions = <KEYS_R THUMBS>;
    hold-trigger-on-release;             // requires PR #1423
)

/* right-hand HRMs */
ZMK_BEHAVIOR(hmr, hold_tap,
    flavor = "balanced";
    tapping-term-ms = <280>;
    quick-tap-ms = <175>;                // double tapping same key allows for repeating
    global-quick-tap-ms = <150>;         // without PR #1387 use global-quick-tap instead
    bindings = <&kp>, <&kp>;
    hold-trigger-key-positions = <KEYS_L THUMBS>;
    hold-trigger-on-release;             // requires PR #1423
)

One last note, the configuration above uses some syntactic sugar introduced in PR #1387, which decouples the quick-tap-ms timeout from the global-quick-tap-ms timeout. Without the PR, one can replace global-quick-tap-ms = <150> with global-quick-tap for a similar effect (global-quick-tap will use the regular quick-tap-ms timeout in this case).

My personal ZMK fork includes both the global-quick-tap-ms PR and the hold-trigger-on-release PR (along with a few other PRs). If you are looking for a ZMK-centric introduction to maintaining your own fork with a custom selection of PRs, you might find my "cookbook approach" helpful.

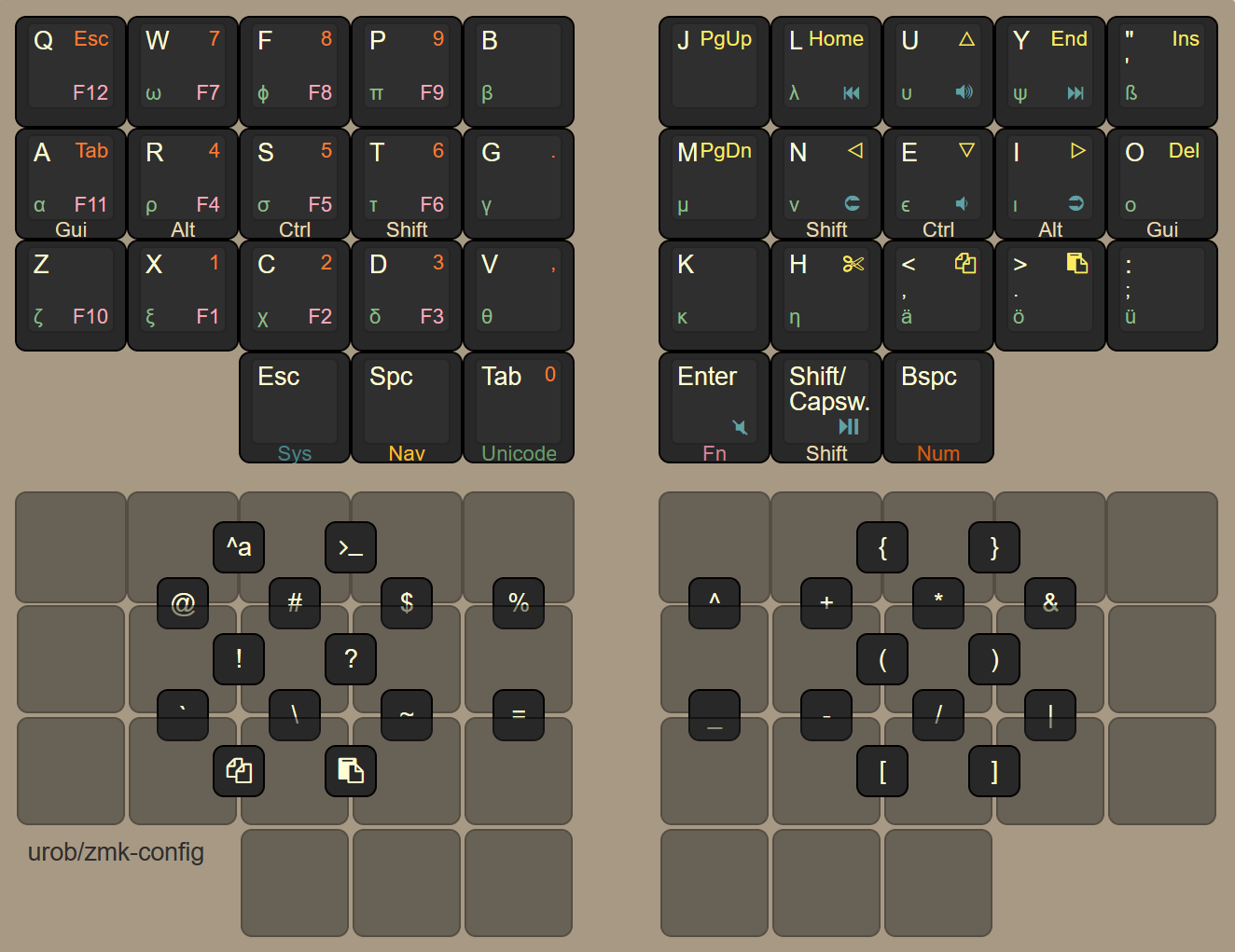

A few thoughts on the combo setup

The combo layout is guided by two goals: (1) put all combos in easy-to-access locations, and (2) make them easy to remember. Specifically:

• the top vertical-combo row matches the symbols on a standard numbers row (except + and & being swapped)
• the bottom vertical-combo row aims for symmetry with the top row (subscript _ aligns with superscript ^; minus - aligns with +; division / aligns with multiplication *; logical-or | aligns with logical-and &)
• parenthesis, braces, brackets, ! and ? all in prime access locations and set up symmetrically
• a numlock shortcut (on W + P) for one-handed "data entry" (aka Sudoku 🙂)
• shortcuts for cut (on X + D), copy, and paste on left side (good with right-handed mouse use)

---

1. I call it "timeless", because the large tapping-term makes the behavior insensitive to the precise timings. One may say that there is still the global-quick-tap timeout. However, with both a large tapping-term and positional-hold-taps, the behavior is not actually sensitive to the global-quick-tap timing: All it does is reduce the delay in typing; i.e., variations in typing speed won't affect what is being typed but merly how fast it appears on the screen. ↩︎

2. One potential downside of global-quick-tap is that it prevents using modifiers immediately after another key press. Arguably, this is only problematic for shift, which is not a problem for me, because I have a dedicated "sticky shift" on my right thumb. If you rely on homerow mods for regular capitalization, you may want to reduce the global-quick-tap term for just the two shift-mods to about 75-100ms. ↩︎
